Connection units

Holiday home, residential and touring park solutions

The humble connection unit has come a long way since its inception by Hawkins Electrical. Our units are regularly upgraded to ensure they meet the latest electrical regulations. Modern units feature interlocking sockets, full circuit protection and optional metering. All our connection units and bollards are available with socket locking flaps for additional security.

HH22

  • Polypropylene construction
  • IP55 rated
  • Measuring Instruments Directive (MID)-approved meter
  • Light grey finish

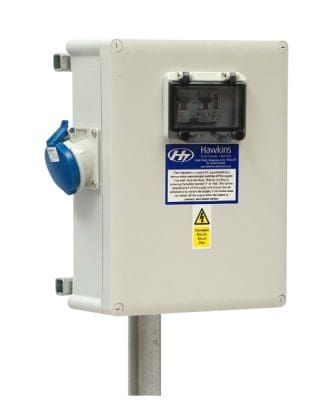

Electrical connection cased unit - HH22

  • 16 A or 32 A BS EN 60309 sockets
  • 16 A or 32 A miniature circuit breakers (MCB)
  • Double terminals
  • Stainless steel socket locking plate
  • Various mounting solutions
  • Polycarbonate reset flap
  • TV and WiFi provision

RHH23

  • Polypropylene construction
  • IP55 rated
  • Direct connection only
  • MID-approved meter
  • Light grey finish

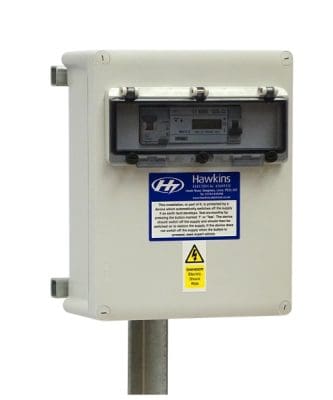

Connection cased unit - RHH23

  • 40 A or 63 A 30 mA residual current devices (RCD)
  • 16 A, 20 A, 25 A, 32 A, 40 A, 50 A or 63 A MCBs
  • Various mounting solutions
  • Polycarbonate reset flap
  • TV and Wi-Fi provision

T-unit

  • Polypropylene construction
  • Polycarbonate reset flap
  • IP55 rated
  • 16 A BS EN 60309 sockets
  • 40 A 30 mA RCDs
  • 16 A MCBs
  • Light grey finish

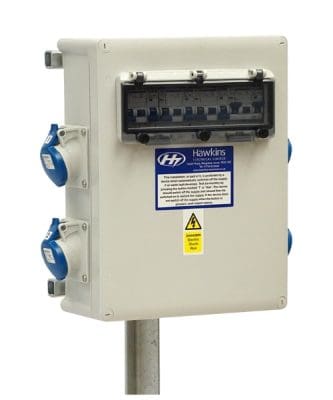

Connection cased unit - T-unit

  • 32 A available on request (one- to two-way only)
  • One to four sockets
  • Metering up to three-way
  • Lockable reset flap
  • Various mounting solutions
  • Illumination
  • Stainless steel socket locking plate

MT range

  • Fibreglass-reinforced polyester (FRP) enclosure
  • IP66 rated
  • 16 A BS EN 60309 sockets
  • 40 A 30 mA RCDs
  • 16 A MCBs
  • Lockable enclosure
  • Light grey finish

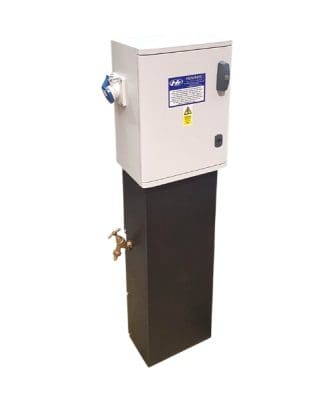

Connection cased unit - MT range

  • 32 A available on request
  • Up to two sockets
  • Metering up to two-way
  • Lockable reset flap
  • Taps and shroud
  • Illumination
  • Stainless steel socket locking plate

Park Isolator

  • Polypropylene construction
  • Polycarbonate reset flap
  • IP55 rated
  • 32 A or 40 A 30 mA RCDs
  • Up to 63 A MCBs
  • Light grey finish

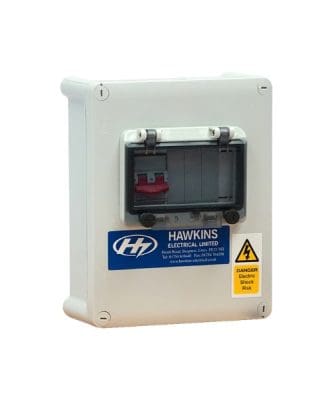

Connection cased unit - Park isolator

Have any questions or ready to order?

For more information on our selection of connection units or to enquire about purchasing, please get in touch.

Contact us

Electrical mains and distribution equipment

Distribution units

We offer a range of switchboards and fused distribution units built to accept the increased cable sizes of caravan parks and marina installations.

UniBollard

A fully adaptable service unit, the UniBollard’s unique design enables easy customisation, installation and maintenance.
